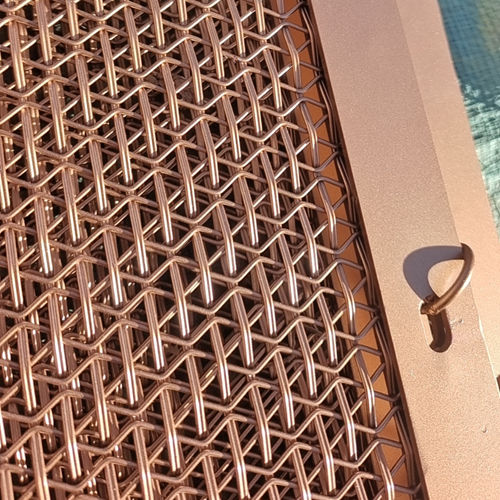

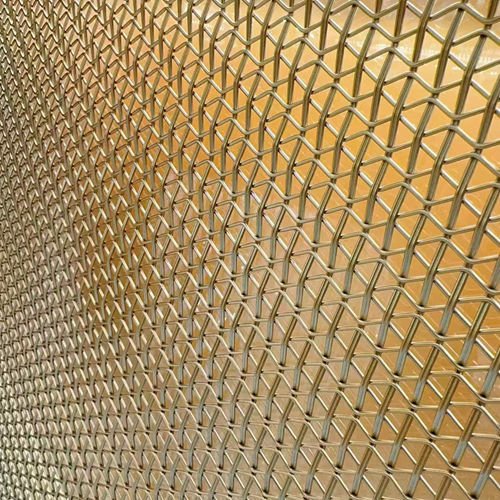

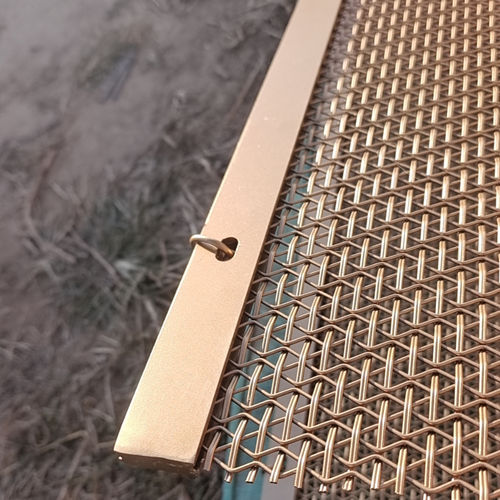

Bronze Stainless Steel Woven Screen Mesh
Our Bronze Stainless Steel Woven Screen Mesh offers a blend of aesthetic elegance and structural strength, ideal for railings, metal facades, safety barriers, and wall decor. Customizable with powder-coated colors, it enhances both functionality and visual appeal in modern architecture.
Key Specifications
| Parameter | Details |
|---|---|
| Material | Stainless Steel (AISI 304/316) |
| Warp Diameter | 2mm (Round Wire) |
| Warp Pitch | 5mm |
| Weft Diameter | 1.2×2mm (Flat Wire) |
| Weft Pitch | 5mm |
| Weight | 8.75 kgs/m² |
| Opening Area | 31% |
| Mesh Thickness | 4.5mm |
| Surface Treatment | Clean & Oil-Free Bronze Finish |
| Max Width | 4 meters |
| Max Length | 15 meters |
Applications
- Safety & Security: Balcony railings, industrial barriers, staircase guards.
- Architectural Cladding: Building facades, sunscreens, decorative metal walls.
- Interior Design: Partition screens, ceiling panels, art installations.
Features & Benefits
✅ Dual Functionality:
- 31% open area balances visibility and security for railings or safety barriers.
- Custom colors (powder-coated) to match architectural themes or branding.
✅ Robust Construction:
- High-tensile stainless steel resists corrosion, impacts, and extreme weather.
- Reinforced 4.5mm thickness ensures stability in large installations.
✅ Easy Installation:
- Pre-cut panels (up to 4m × 15m) minimize on-site adjustments.
- Lightweight design (8.75 kg/m²) reduces structural load.
✅ Eco-Friendly:
- Non-toxic, oil-free surface complies with RoHS standards.
- 100% recyclable material for sustainable projects.
